King Innovation

King Innovation Large Wire Connectors (50 ct.) | 20136-50CT

SKU
20136-50CT
HLSG SKU:
KNG20136PACK
Sales Price $61.14 Our Price $95.95 You save 36%

Similar to Items You've Viewed

King Innovation

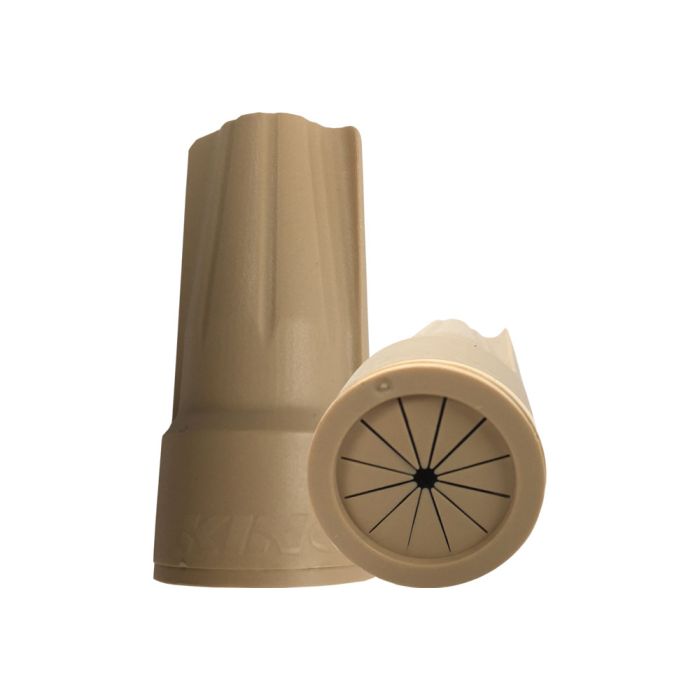

Large Wire Connectors

You can now use this connector without a junction box, optimal for lighting, irrigation or low voltage underground wiring. This connector is already pre-filled with a petroleum-based sealant making for a better connection.

Features Benefits

  • 30V/10 AMPS Max
  • No junction box required
  • Filled with petroleum based sealant
  • Suitable for all low voltage applications
  • For use in lighting, irrigation, and low voltage underground wiring

Product Specifications & Measurements

  • Max. Voltage: 30V/10 AMP
  • Connector Size: 13/16" x 1 9/16"
  • Wire Type: Copper/Copper
  • Wire Range: Min #22/Max #6
  • Temperature Rating: 75°C (167°F)
  • Petroleum Sealant: -29°F to 250°F

Measurements

  • A - 1.563"
  • B - 0.813"
  • C - 0.656"
  • D - 0.656"

Installation Instructions

IMPORTANT: Turn off power before installing or removing connector. Product to be used in accordance with local and national codes.

  1. Strip wires 5/8”.
  2. Align frayed strands or conductors.
  3. No pre-twisting needed. Hold stripped wires together with ends even. Note: Twist and lead stranded wires slightly.
  4. Push wires firmly into connector when starting.
  5. Twist connector onto wires pushing firmly until tight. Do not over torque. Do not reuse.

Downloads

Specifications (234.44 kB)

Accessories Resources

Wire Connector Resources

More Information
Brand King Innovation
Product Type Waterproof Wire Connectors
Max Voltage 30V
Temperature Range -29 - 250°F
Temperature Rating 167°F
Wire Range Min #22/Max #6
Warranty 1 Year
