King Innovation

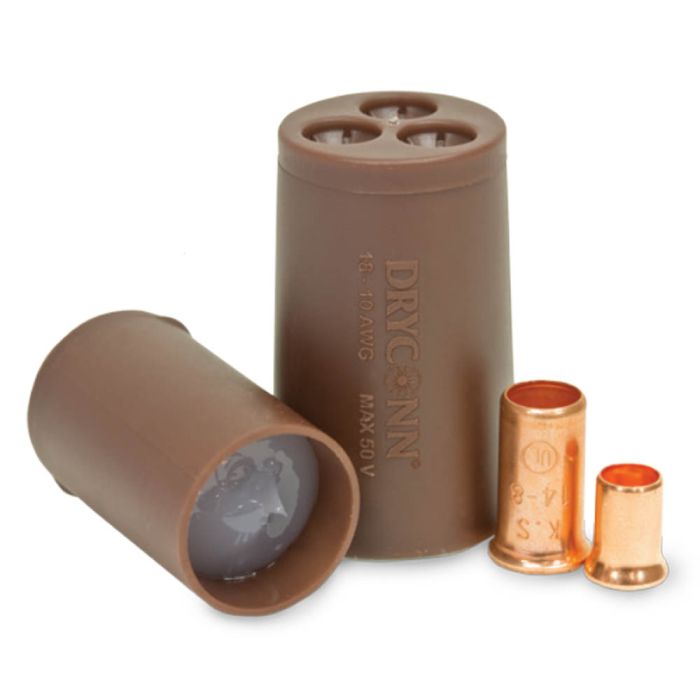

King Innovation Dry Crimp Prefilled Medium Wire Connectors | 20245

SKU
20245
HLSG SKU:
KNG20245
Free Shipping on Orders over $149

Durable and installation-ready, this crimp style wire connector has a protective housing containing dielectric silicone sealant that makes it perfect for waterproof splicing. It features holes in the connector housing that seal around the wire to protect the silicone from escaping.

  • 1 connector per order
  • Max Voltage: 50 V
  • Manufacturer approved for direct bury
Sales Price $1.85 Our Price $3.35 You save 45%

Installation Instructions

  1. Important! Shut off the power before installing or removing the connector.
  2. Insert conductors through ports in base of body.
  3. Strip the conductors.
  4. Align any frayed strands or conductors, twist stripped conductors together, and insert them into the crimp sleeve.
  5. Using an indent type crimping tool, crimp sleeve and trim excess bare wire
  6. Push connectors fully into plug.
  7. Insert plug into body until it snaps into place.

Warranty

One (1) year from the date of purchase

Quick Facts

  • Length: 1.5 in.
  • Width: 0.9 in.
  • Wire Type: Copper
  • Wire Range: #18 - #10 AWG
  • Silicone Sealant Temperature: -45°F to 400°F

Downloads

Specifications (641.61 kB)
More Information
Brand King Innovation
Type Wire Connectors
Max Voltage 50V
Wire Range Min #18/Max #10
Warranty 1 Year
