King Innovation Landscape Lighting Lug Connectors (2 ct.)

Only %1 left
SKU
903KING
Free Shipping on Orders over $149

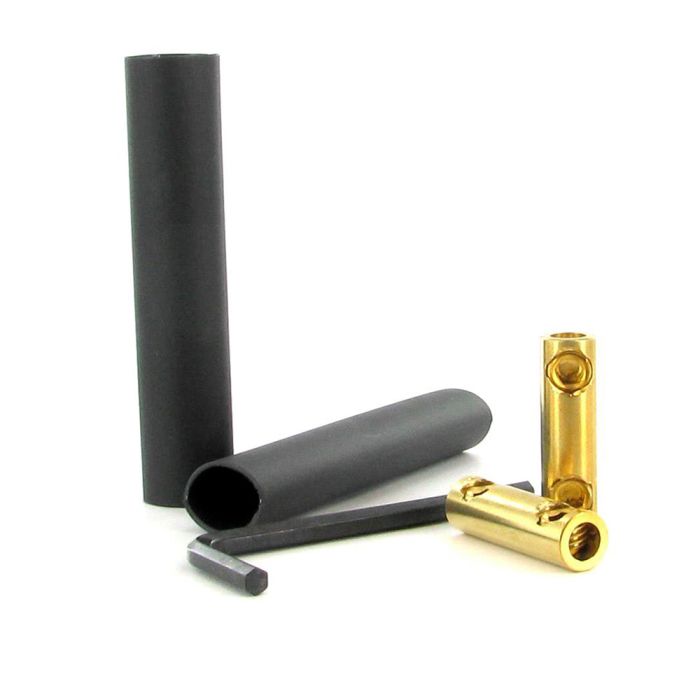

Constructed from durable brass, this medium lug connector with a fast curing heat shrink and set screw thread pitch makes it easier than ever to achieve solid, weather resistant mechanical connections. Its suited for low-voltage landscape lighting applications where performance and clean looks are important.

  • 2 connectors per order
  • Max Voltage: 30 V
  • Max Amperage: 25 A
  • Set screw thread pitch allows tighter securing of wires
  • Includes solid brass lugs and set screws as well as a polyolefin heat shrink with adhesive liner
As low as $8.65 Our Price $16.95 You save 49%

Installation Instructions

  1. Important! Shut off the power before installing or removing the connector.
  2. Prior to stripping wire, slide heat shrink onto cable.
  3. Strip wires 0.5 in.
  4. Align any frayed strands or conductors.
  5. Tighten set screw with Allen wrench. Do not over torque.
  6. Position heat shrink on lug and heat evenly with heat gun or hand held torch until sealed.

Warranty

One (1) year from the date of purchase

Quick Facts

  • Length: 1.25 in.
  • Width: 0.4 in.
  • Wire Type: Copper
  • Wire Range: #18 - #12 AWG
  • Silicone Sealant Temperature: -45F to 400F
  • UL Listed BLCS
