Brilliance LED

Brilliance LED Dimmer | 12-VAC-BRILLIANCE-DIMMER-SWITCH

SKU
12-VAC-BRILLIANCE-DIMMER-SWITCH
HLSG SKU:
BRIDIMMERSWITCH
Free Shipping on Orders over $149

The American-made Brilliance LED Dimmer provides 12 VAC dimming for up to 120 W and must be installed in a deep junction box.



  • Operating Range: 12 VAC
  • Current Capacity: 10 Amps
  • Max Wattage: 120 W
  • No minimum load
  • Includes dimmer plate, gasket, wire nuts, plate screws, and spare fuse
Sales Price $163.30 Our Price $233.28 You save 30%

Description

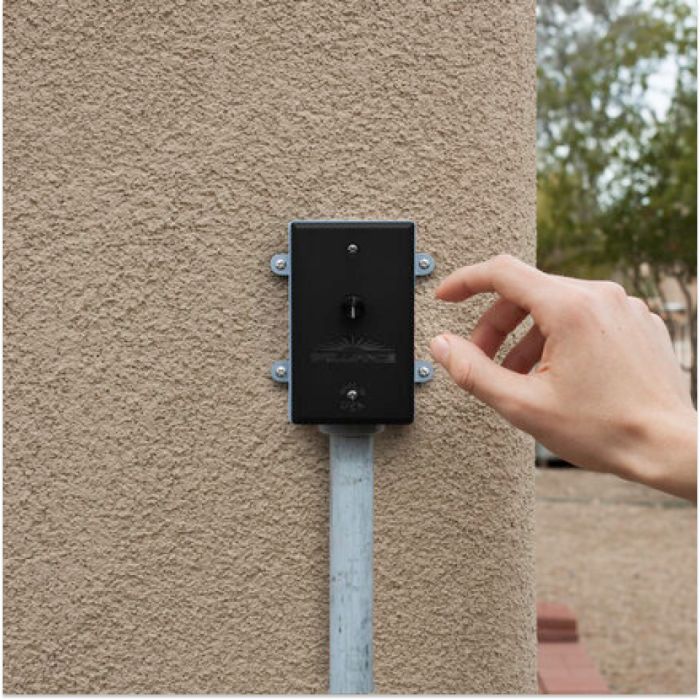

The American-made Brilliance LED Dimmer provides 12 VAC dimming for up to 120 W and must be installed in a deep junction box. It can be mounted next to the 12 VAC transformer or anywhere in the field and is compatible with all Brilliance LED bulbs. Bear in mind that the range of the Dimmer may vary depending on the applied load.

Warranty

Three (3) year warranty

Quick Facts

  • Height: 4.5 in.
  • Width: 2.75 in.
  • Installs in single-gang deep junction box on low-voltage side of magnetic step-down transformer
  • IP63 Rated

Downloads

Installation (492.06 kB)
Specifications (217.47 kB)
