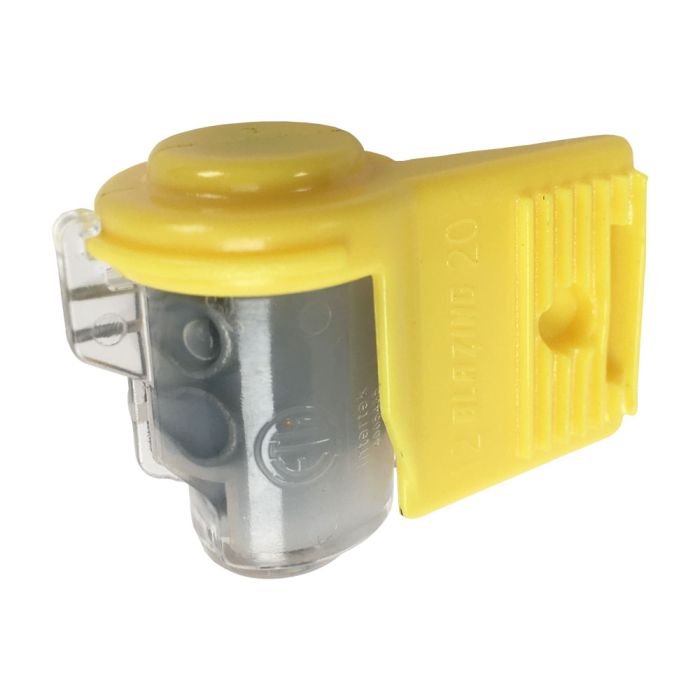

Blazing Waterproof SnapLoc Connector

Blazing Waterproof SnapLoc Connector

Only %1 left

SKU

BVSBLZ

Used in landscape lighting applications, including direct bury, this 2-wire waterproof and corrosion-proof connector saves money and time with its latch snap that holds wire tightly for maximum wire grip. Each connection comes prefilled with dielectric silicone sealant to ensure it never hardens.

1 connector per order
Max Voltage: 600 V building wire
For use in direct bury applications when operating at 30 V or less
Impact resistant

As low as $1.72 Our Price $2.75 You save 37%

Size

Qty

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Quick Facts

Wire Type: Copper/Copper
Wire Range: Large Hole Min #14/Max #12, Small Hole Min #20/Max #16
Temperature Rating: 221F (105C)
Silicone Sealant Temperature: -40F to 400F
ETL Listed

Installation Instructions

Important! Shut off the power before installing or removing the connector.
Strip wires to 11/16 in. Use one of the strip guides molded into the connector for reference. Pre-twist stranded wires.
Rotate wings fully apart beyond 90.
Insert the unstripped wires into connector; #12-#14 in the large holes and #16-#20 in teh small hole. Exposed ends of wires should be visible through the clear housing on the back.
Hold wires in place while squeezing the handles together until the connector snaps shut.
