Alliance 300W Stainless Steel Transformer | XF300

SKU

XF300

HLSG SKU:

AOLXF300

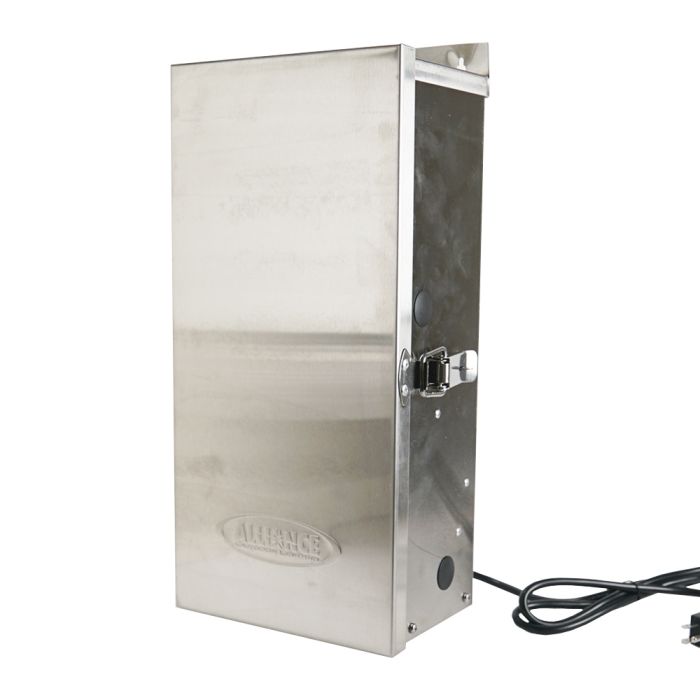

The XF300 Multi-Tap Transformer is suitable for indoor and outdoor use, thanks in large part to its durable stainless steel exterior that defends it from the harshest weather elements. Fully potted and insulated, this single core transformer provides inline surge protection as well as multiple voltage taps ranging from 12 to 15 volts.

Max Amperage (Load): 2.5 A
Transformer Size: 300 W
Available Voltage Taps: 12, 13, 14, 15 V
Relay installed to bring the amperage delivered to the timer and photocells down to a lower level, improving the longevity of life to those accessories and eliminating failures
Secondary breaker switches on each common tap for easy On/Off
5’ heavy-gauge power cord with grounded plug

Sales Price $304.49 Our Price $425.55 You save 28%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Description

The XF Transformer Series from Alliance includes simple and innovative features that offers straightforward installation and reliable operation for lighting projects of any scope. It addition to its snap-in photocell-ready receptacles, it features an amp loop that provides an easy point of reference to check the primary amperage on the transformer. Also included are two lug terminals: the tilted lug bar that makes the secondary lugs a breeze to access and install and the adjusted lug bar, which eliminates the blind spots that occur when trying to install low-voltage wire to the terminal lug. Enjoy the convenience of the removable bottom panel that allows for easy access to lug terminal, more room for wiring, and the ability to attach through the five knockouts.
