Alliance 150W Stainless Steel Transformer | XF150

Free Shipping on Orders over $149

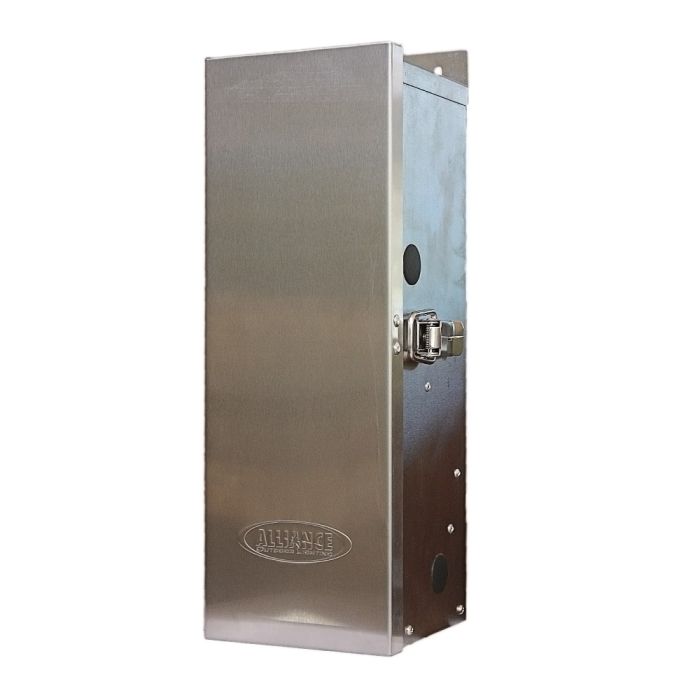

The XF150 Multi-Tap Transformer is suitable for indoor and outdoor use, thanks in large part to its durable stainless steel exterior that defends it from the harshest weather elements. Fully potted and insulated, this single core transformer provides inline surge protection as well as multiple voltage taps ranging from 12 to 15 volts.

  • Max Amperage (Load): 1.25 A
  • Transformer Size: 150 W
  • Available Voltage Taps: 12, 13, 14, 15 V
  • Photocell and timer sold separately
  • Snap-in photocell-ready receptacles for easy, flexible installation
  • 5’ heavy-gauge power cord with grounded plug
Sales Price $242.42 Our Price $341.87 You save 29%


The XF Transformer Series from Alliance includes simple and innovative features that offers straightforward installation and reliable operation for lighting projects of any scope. It addition to its snap-in photocell-ready receptacles, it features an amp loop that provides an easy point of reference to check the primary amperage on the transformer. Also included are two lug terminals: the tilted lug bar that makes the secondary lugs a breeze to access and install and the adjusted lug bar, which eliminates the blind spots that occur when trying to install low-voltage wire to the terminal lug. Enjoy the convenience of the removable bottom panel that allows for easy access to lug terminal, more room for wiring, and the ability to attach through the five knockouts.


Lifetime Warranty

Quick Facts

  • Max Input (Primary Voltage): 120 V
  • Secondary Voltage: 12 V
  • Stainless steel cabinet with removable and locable latched door
  • DOE and CEC compliant
  • UL Listed


Installation (133.11 kB)
Specifications (146.06 kB)
More Information
Finish Stainless Steel
Watts 150W
Body Material Steel
Voltage 120V
Voltage Tap Output 12 - 15V
